Name: MAXPlanetary Base Kit
SKU: REV-25-2109
Price: 48.6 CAD
Availability: InStock

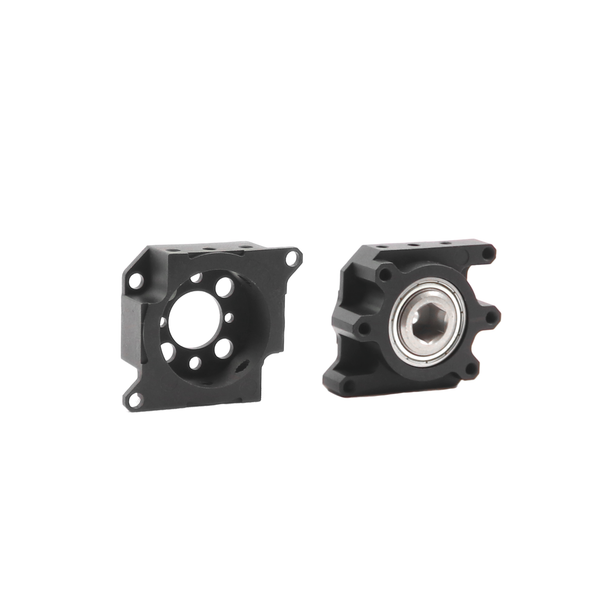

The MAXPlanetary Base Kit (REV-25-2109) is the entry point into using the MAXPlanetary System. This base kit includes a universal input stage, 1/2in hex socket output, hardware pack, 8mm keyed input coupler kit, and a 1/2in rounded hex shaft. Purchase a MAXPlanetary 3:1 Cartridge (REV-21-2101), MAXPlanetary 4:1 Cartridge (REV-21-2102), or MAXPlanetary 5:1 Cartridge (REV-21-2103) to complete your system. Add a NEO Brushless Motor (REV-21-1650) or an adapter kit if you want to use a different motor, like the new MAXPlanetary Falcon Spline Input Coupler (REV-21-2124) or MAXPlanetary Kraken X60 Compatible Input Coupler (REV-21-2138).

The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been carefully optimized to provide torque density unavailable in FRC up until now.

The MAXPlanetary System is intended for use with the NEO Vortex Brushless Motor, NEO Brushless Motor, Falcon 500, Kraken X60, and CIM motors. It also supports NEO 550 and 775 size motors (775pro or AM RedLine). Building on the ability to iterate and adjust designs easily, the MAXPlanetary System consists of lubricated cartridges allowing for swapping gear ratios on the fly and with ease. Users can configure a single-stage planetary using one of three different reduction cartridges or build multi-stage gearboxes through stacking individual cartridges together. The user can use the included 1/2in hex shaft or use a custom length of hex shaft best suited for the application. The gearbox also provides two mounting options, face mount and side mount, for ultimate flexibility in your robot design.

Features

3:1, 4:1, and 5:1 Gear Stages available
Socket 1/2in Hex Output
- Ability to retain a shaft blind with a #10-32 screw
Compatible with NEO/CIM/Mini CIM (without modifying the shaft)
- Keyed Input (no set screws)
MAXPlanetary Input Adapters available for NEO 550 and 775 size motors (775pro or AM RedLine)
- Press-fit adapters (no set screws)
- (REV-21-2117) MAXPlanetary 550 Input Kit
- (REV-21-2118) MAXPlanetary 775 Input Kit
MAXPlanetary Input Couplers available
- (REV-21-2110) MAXPlanetary 1/2in Hex Input Coupler
- (REV-21-2124) MAXPlanetary Falcon Spline Input Coupler
- (REV-21-2138) MAXPlanetary Kraken X60 Compatible Input Coupler
All #10-32 Screws used for Assembly and Mounting
Assembled/Disassembled from the Rear
- The gear ratio can be changed while the gearbox output is mounted to the robot
- Hex key or t-handle clears the motor
Side Mounting Holes
- Holes on the top and bottom
- Holes are on a 0.5in pitch regardless of number of stages
#10-32 Face Mounting Holes on a 2in Bolt Circle with 2 Orientations
2in Gearbox Height
- Gearbox does not protrude above or below common FRC structural tubes
- Output shaft stays on 1.0in pitch when the gearbox is mounted using the side holes

Specifications

Gearbox Dimensions:
- 0-Stage: 1.500in
- 1-Stage: 2.000in
- 2-Stage: 2.500in
- 3-Stage: 3.000in

Height: 2.000in
Width: 2.438in

Weight:

Base kit (no shaft): 261g (0.576lb)
3:1 gear stage: 155g (0.342lb)
4:1 gear stage: 133g (0.294lb)
5:1 gear stage: 138g (0.303lb)
3in Output Shaft: 27g (0.059lb)

Exact Gear Ratios:

3:1 Stage: 3:1
4:1 Stage: 4:1
5:1 Stage: 5:1

Gear Pitch: 0.65 Module
Pressure Angle: 20°
Ring Gear Tooth Count: 72
Face Mounting Pattern: #10-32 on a 2in Bolt Circle
Output Socket: 1/2in Hex, 0.438in Deep
Included Shaft: 1/2in Hex, 3.000in Long

Static Load Ratings

The following torque measurements are for a static load condition (i.e. not moving). The torques listed are for the output of the stage.

3:1 Cartridge - Tested to 290Nm [2567in*lbs] (no failure)
4:1 Cartridge - Fails at 270Nm [2390in*lbs]
5:1 Cartridge - Fails at 240Nm [2124in*lbs]
1/2in Hex Socket Output - Fails at 250Nm [2213in*lbs]

NOTE: Cantilevered (sideways) load on the output shaft puts additional stress on the gearbox and will reduce the torque the gearbox can take. In addition, shock loads can cause the gearbox to fail in situations where the steady-state torque is still within allowable limits.

Allowed Stage Configurations

The following chart shows which gear cartridge configurations are allowable with different motors. Cells shown in GREEN are allowed and cells shown in RED are not allowed.

These ratings are based on the default current limit on the SPARK MAX (or Talon FX). Increasing the current limit increases the maximum torque the motor can produce and may put components of the gearbox outside of their load rating.

Kit Contents

SKU	PRODUCT NAME	QUANTITY
REV-21-2104	MAXPlanetary 1/2in Hex Socket Output	QTY 1
REV-21-2106	MAXPlanetary Universal Input Stage	QTY 1
REV-25-2107	MAXPlanetary Hardware Pack	QTY 1
REV-21-2108	MAXPlanetary 8mm Keyed Input Coupler Kit	QTY 1
REV-21-2813	1/2in Rounded Hex Shaft, 3.0in Long, Tapped	QTY 1

Notes

As of 11/14/2022, MAXPlanetary Base Kits (REV-25-2109) will ship with an updated MAXPlanetary 8mm Keyed Input Coupler Kit (REV-25-2108). The input coupler kit was adjusted to be slightly shorter so that the CIM, Mini CIM, and Falcon no longer require the shim plate. As a result, the MAXPlanetary CIM/Falcon Spacer (REV-21-2119) is no longer included in the MAXPlanetary Base Kit.
