Description

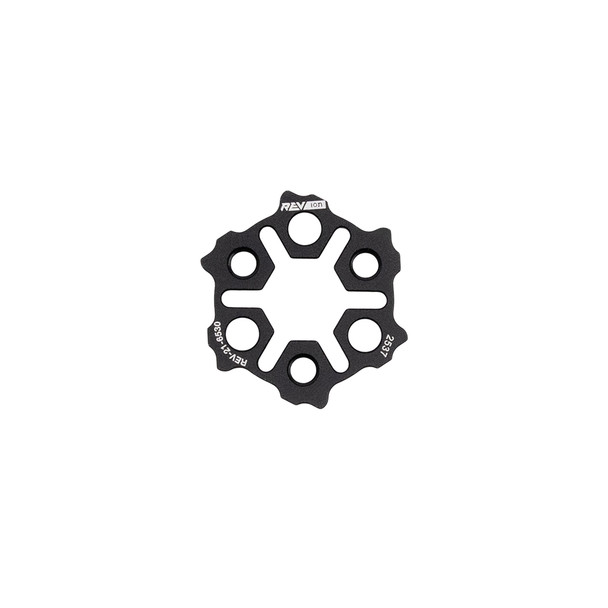

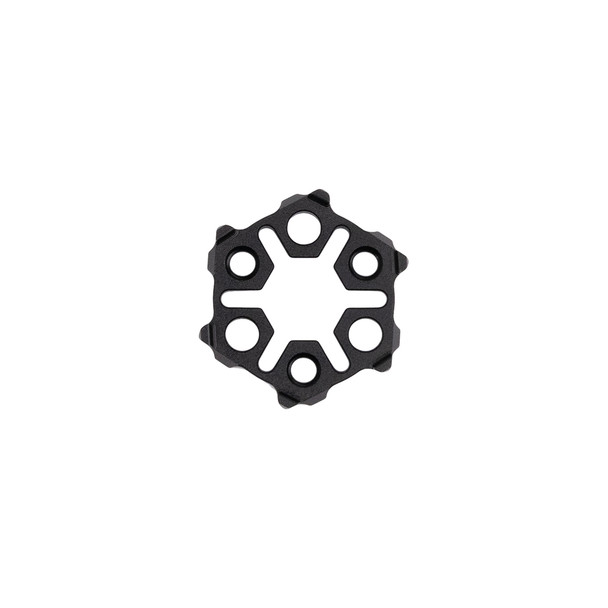

The Locking MAXHub - 1/2in Hex is a compact, dual plate hub system designed to secure 1/2in hex shafting inside any MAXSpline bore component. Each kit includes two identical wedge locking plates and the necessary #10-32 hardware. When the plates are drawn together, their internal geometry twists and expands to simultaneously clamp onto the 1/2in hex shaft and the outer MAXSpline bore. This creates a rigid, slip resistant mechanical connection without requiring additional shaft length or external collars.
Each plate features three #10 clearance holes and three matching #10-32 threaded holes. This layout allows the included button head screws to tighten from either direction, making the MAXHub easy to install even in tight assemblies. While only three screws are required for locking, all six can be installed for added security. Once preloaded, the hub requires only a small quarter turn to fully lock or unlock, enabling quick adjustments and service. The result is a space efficient and highly reliable solution for securing wheels, sprockets, and other MAXSpline bore components to 1/2in hex shafts.
Features
- Dual plate wedge mechanism locks onto both 1/2in hex shaft and MAXSpline bore simultaneously
- Space saving design adds no extra length to the shaft or assembly
- Requires only three screws to lock in place, with the option to use all six for additional holding strength
- Quick action tightening requires only about a quarter turn to secure or release
- Ideal for mounting wheels, sprockets, or any MAXSpline bore component to 1/2in hex shafting
Specifications
- Material: 6061 Aluminum
- Finish: Anodized Black
- Max Locked Width w/Screws: 15.3mm (0.6in)
- Bore: 1/2in Hex
- Outside Profile: MAXSpline Bore
- Single Plate Weight: 5g (0.011lb)
- 6 Screw Assembly Weight: 21g (0.046lb)
Kit Contents
| SKU | PRODUCT NAME | QUANTITY |
| REV-21-6530-P01 | Locking MAXHub - 1/2in Hex | QTY 2 |
| REV-29-2941 | Button Head Hex Drive Screws #10-32 x3/8in | QTY 6 |
