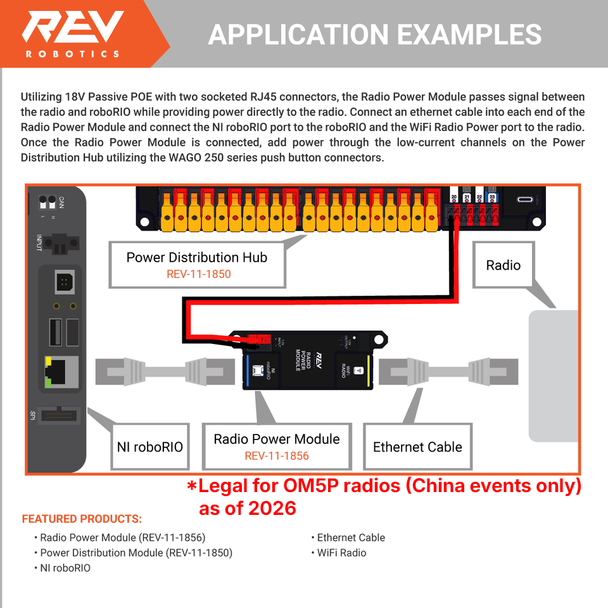

The REV Radio Power Module is designed to keep one of the most critical system components, the OpenMesh OM5P-AC WiFi radio, powered in the toughest moments of the competition. Traditional barrel jacks easily work themselves loose and often require hacks like hot glue to prevent intermittent power losses. The Radio Power Module eliminates the need for powering the radio through a traditional barrel power jack. Utilizing 18V Passive POE with two socketed RJ45 connectors, the Radio Power Module passes signal between the radio and roboRIO while providing power directly to the radio. After connecting the radio and roboRIO, easily add power to the Radio Power Module by wiring it to the low-current channels on the Power Distribution Hub utilizing the color coded push button WAGO terminals.
Features
- Easy to wire
- WAGO 250 series push button terminals for power
- Two socketed RJ45 connectors accepting standard ethernet cables
- Designed for use with the OpenMesh OM5P-AC
- Compatible with other devices that accept 18V passive POE
Specifications
- Input Voltage: 4.75V - 18V
- Output Voltage: 18V
- Maximum Output Current: 1A
- Mounting Holes: #10 Clearance (0.197"/5mm) on 0.5" pitch
- Physical Specifications:
- Length: 3.375"
- Width: 1.250"
- Height: 0.875"
- Weight: 41g (0.09lbs)
Documentation
- ION Build System Guide
- Radio Power Module Specifications and Features
- Radio Power Module Getting Started Guide
CAD & Drawings
- coming soon
- REV-11-1856 CAD Onshape
- SKU-DR
