Bearings, Shafts, & Spacers

The Vortex Shaft - MAXSwerve Integrated Key is compatible with the REV ION System and gives users the ability to drive a MAXSwerve Module without the need for the MAXSwerve Key. This eliminates a potential point of failure in the MAXSwerve since the key...

The Vortex Shaft - 20DP Gear - 7T is compatible with the REV ION System and offers users the unique ability to achieve substantial gear reductions directly from the motor. This gear features a 7T 20DP design that is typically too small for an 8mm keyed...

The 8mm Vortex Shaft, compatible with the REV ION System, empowers you to utilize the NEO Vortex Brushless Motor with any 8mm keyed shaft component. This interchangeability also means that the NEO Vortex matches the output of a NEO Brushless Motor V1.1,...

The Vortex MAXPlanetary Input Kit is compatible with the REV ION System and gives users the ability to mount a MAXPlanetary Gearbox directly to your NEO Vortex Brushless Motor and SPARK Flex Motor Controller. Working seamlessly with the MAXPlanetary...

MAXSpline Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. Specifications Material: POM (Acetal/Delrin) OD: 1.50in Weights &...

#10 Spacers are compatible with the REV ION System and are an accurate way to space structural components like plates, brackets, or tubes apart on #10 screws. Can also be used to to space motion components like gearboxes away from their mounting...

1/2in Rounded Hex Shafts are compatible with the REV ION System and are a ready-to-use length of hex shaft that have been cut to length and have the ends tapped. The ends are tapped #10-32 in order to accept a screw and washer or shaft collar. The 1/2in...

#10-32 Standoffs are compatible with the REV ION System and provide spacing for mounting key items on your robot. These standoffs are tapped on each end for a #10-32 thread and have a 3/8in flat to flat dimension, similar to a #10-32 nut. Specifications ...

Commonly included with our gearboxes and pinion options, the 8mm Keyed Shaft Retaining Hardware Pack is compatible with the REV ION System and includes the hardware needed to retain 2mm keyed elements to 8mm OD shafts without the bulk of alternative...

The 8mm Shaft Spacer is a stainless steel 1/16 inch washer designed for precise shaft spacing in FRC and FTC mechanisms. Used on the NEO 2.0 Brushless Motor to achieve correct input coupler alignment in MAXPlanetary assemblies, this spacer also fits any...

MAXSpline Shaft Collars provide mechanical retention for components mounted on MAXSpline Shaft and use a two piece aluminum clamping design for secure attachment. Both versions are black anodized for durability and integrate cleanly within the REV ION...

The MAXSpline Shaft - Polycarbonate brings the versatility of the MAXSpline profile to lightweight mechanisms where reducing mass is a priority. Designed for intakes, conveyors, and other low load assemblies, this shaft provides an easy way to build...

The Locking MAXHub - 1/2in Hex is a compact, dual plate hub system designed to secure 1/2in hex shafting inside any MAXSpline bore component. Each kit includes two identical wedge locking plates and the necessary #10-32 hardware. When the plates are...

The Locking Shaft Collar MAXSpline is a compact, purpose built clamping solution for securing components to a MAXSpline shaft. Designed as a thin aluminum plate, it can be paired with a second collar or mounted directly to any MAXSpline wheel or sprocket...

The Vortex Shaft - 20DP Gear - 8T is compatible with the REV ION System and offers users the unique ability to achieve substantial gear reductions directly from the motor. This gear features a 8T 20DP design that is typically too small for an 8mm keyed...

The 15T Spline Shaft is a solid stainless steel shaft sized at 480mm for long span applications or to be used as stock to cut custom length shafts. Its 15 tooth involute spline profile features an 8mm outer diameter and interfaces with the REV ION...

The 15T Spline to 1/2in Hex Adapter provides a simple and reliable way to integrate motors with a 15T spline output shaft into mechanisms designed around 1/2in rounded hex. This adapter is ideal for teams looking to pair the NEO 2.0 Brushless Motor...

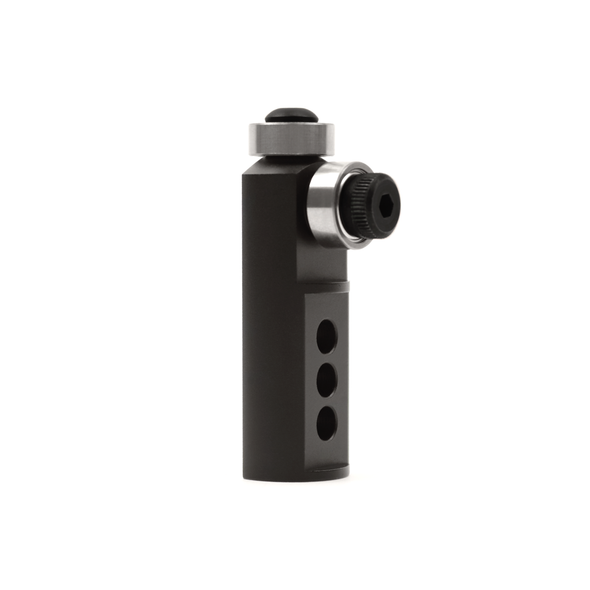

The Elevator Bearing Block (REV-20-2051) is a trusted choice for smooth sliding motion between two pieces of rectangular tubing. It mounts on the narrow, 1in side, of tubing (e.g. 1x1 or 2x1) and uses shielded ball bearings for reduced friction. Its...

The #10-32 Shaft End Screw is compatible with the REV ION System and is used to retain parts on any ION hex shaft instead of shaft collars. 1/2in Rounded Hex Shafts come tapped with a #10-32 hole. The integrated flange is larger than the outside...

MAXSpline Bearing Blocks are compatible with the REV ION System. Quickly add bearing support to any location on REV ION extrusion without the need for precision machining. Can also be used in a west coast style drivetrain to add center wheel drop while...
