REV DUO

Updated for the 2024-25 season, the FTC Starter Kit V3.1 introduces new and existing REV DUO products so teams can maximize their build. The FTC Starter Kit V3.1 was developed based on feedback from teams to include more of the essential...

The DUO Control Bundle offers basic FTC-legal control system components to get an existing robot up and running. Pair this bundle with the DUO EDU Mechanical Kit (REV-45-2708) to get started with our all-new curriculum, Intro to Robotics I (REV-77-2707),...

Featuring the REV Driver Hub, an easy to use, dependable, and durable device designed for interfacing with the Control Hub. Featuring an Android operating system and built-in dual band Wi-Fi, this device makes getting your robot running easier than...

The EDU Kit V2 was specifically created to implement hands-on STEM projects in the classroom. This upgrade bundle bridges the gap between the EDU Kit V2 (REV-45-2041) and the FTC Starter Kit V3.1 (REV-45-3529), providing the needed equipment to...

The REV USB PS4 Compatible Gamepad is compatible with both the REV DUO and REV ION Systems. Plug the REV Gamepad directly into a Driver Hub to enable feature rich control of your robot. Additionally, when plugged into a PC, it offers an Xbox...

The REV UltraPlanetary Gearbox Kit is the entry point into using the REV UltraPlanetary System. The kit comes with UltraPlanetary Cartridges to support six different final gear reductions ranging from nominally 3:1 to 60:1 allowing for the right amount...

The 3-pin JST PH Cable is keyed and locking for improved reliability. Use this cable along with an XT30 Extension cable to connect a second REV Robotics Expansion Hub. Expansion Hub 3-pin JST PH Connections: RS485 - Daisy-chain communication to a second...

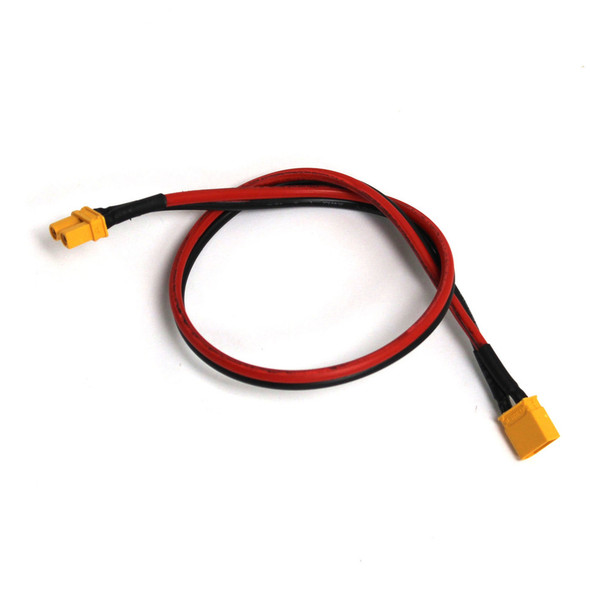

The XT30 Extension Cable is keyed and locking for improved reliability. Use this cable along with an 3-pin JST PH Cable to connect a second REV Robotics Expansion Hub. Expansion Hub XT30 Connections: Power, One Male and One Female XT30...

UltraPlanetary Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems. The UltraPlanetary Outside Mounting Bracket (REV-41-1621) is used to...

The 550 Motor Pinions are used for transferring power from a 550 class motor, like the HD Hex Motor or NEO 550, to a mechanism. These pinions come in four different types. The 32DP pinion gear is compatible with 32DP gears,the UltraPlanetary Pinion is...

The 4-pin JST PH Cable is keyed and locking for improved reliability.  Expansion Hub 4-pin JST PH Connections: Motor Encoder Digital Analog I2C Product Options  SKU   PRODUCT NAME   REV-31-1407-PK4   JST PH...

DUO Flap Wheels are compatible with the REV DUO System and feature a 5mm Hex Bore. They are used on intakes to pick up irregular gamepieces, playing a similar role to compliant wheels. While compliant wheels provide compliance with minimal slip between...

The REV Smart Robot Servo V2 – available in Balanced and UltraSpeed configurations – is a fully configurable metal-geared servo designed to simplify servo-based mechanisms. Each SRS V2 can be used as a standard angular, custom angular, or...

REV 45mm x 15mm C Channel has a 45mm x 15mm rectangular profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsional strength is required. The 45mm wide side of the channel...

This stretchy latex rubber tubing is sized to fit through any of the M3 holes in DUO brackets, wheels, gears or other motion products. String tubing between outside holes on two wheels to create a compliant intake.  Specifications Color: Black...

GT2 3mm Pitch Belts are compatible with both the REV ION System and the REV DUO System. These belts go hand in hand with GT2 timing pulleys. Use belts and pulleys in tight to fit areas where adjustment is difficult. Specifications Pitch: 3mm Width: 9mm...

REV has introduced MAXComposite in two thickness options, making this high performance material accessible to everyone. MAXComposite is designed for applications requiring strength, impact resistance, and abrasion resistance, all while being 25% lighter...

Polycarbonate Sheet offers an ideal solution for lightweight, durable, and customizable components. With five(5) 1mm thick sheets measuring 400mm x 350mm, this versatile material is perfect for crafting sponsor panels, branding graphics, intake...

The REV Servo Hub is compatible with both the REV ION and REV DUO systems. Over a single communication interface it can provide advanced control of up to six (6) servos. This means that the Servo Hub needs no additional PWM cabling between it and your...

The 9-Axis IMU, compatible with the REV DUO System, is a high-performance inertial measurement unit (IMU) featuring the Bosch BNO055 smart sensor with an integrated accelerometer, gyroscope, and magnetometer. Developed to be plug and play with the REV...
